GENO 400 Hz DIGICOM Power
Converter Model 779
Light Weight • Hand Carry • 4 Standard Outlets
- 50 Hz, 60 Hz, 400 Hz
- Single-, Two-, or Three-Phase
- 100 VAC to 250 VAC
- 120 VAC 60 Hz Single Phase
- Regulated sine wave 4800 VA
- Two, 20-amp circuits
- Four standard outlets
- Operates inductive loads (AC motors)
- Capacitive loads (power supplies)
- Output short-circuit protected
OPERATION

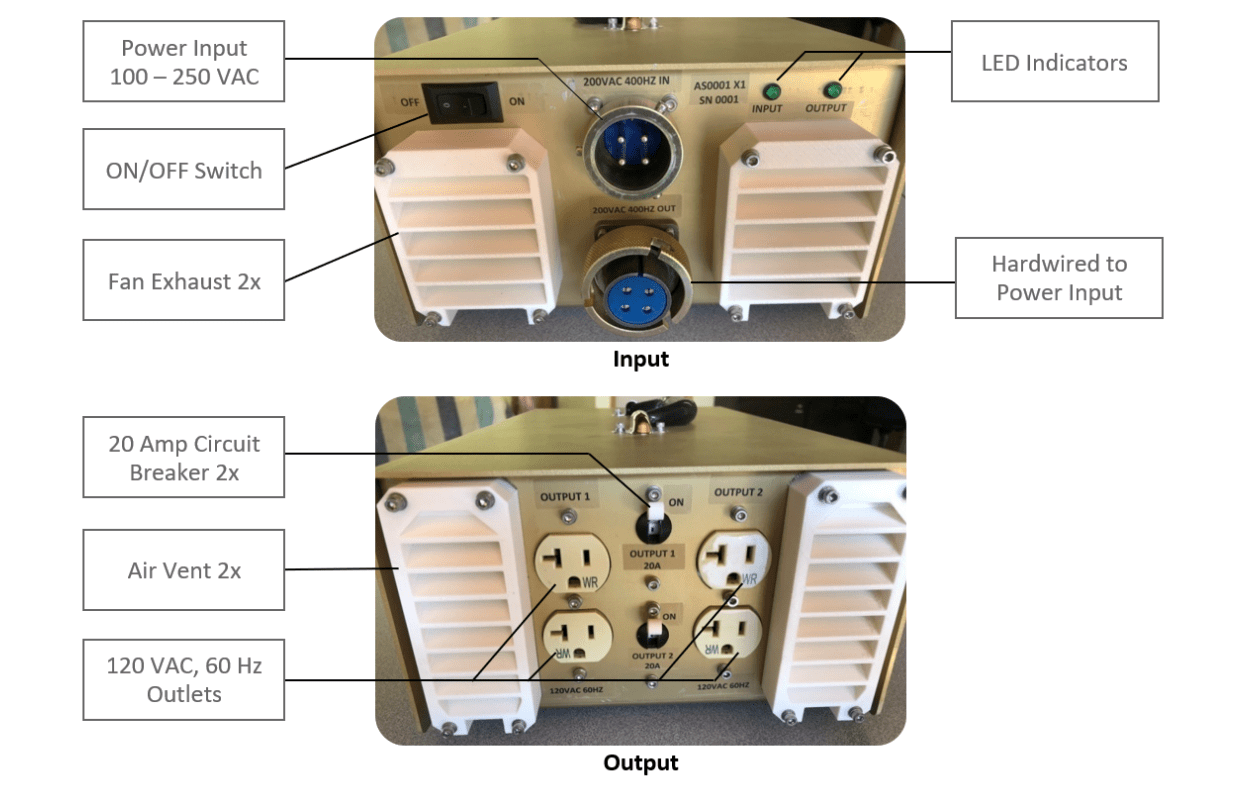

The GENO 400 Hz DIGICOM Power Converter Model 779 accepts 100 VAC–250 VAC, 50 Hz, 60 Hz, and 400 Hz input and converts the power to 120 VAC 60 Hz output. Two 20-amp circuits provide power to the four outlets. The power ON/OFF switch controls power; two LED indicators provide status. Two internal cooling fans operate when power is applied and provide cooling from the outside air through the vents. Each vent contains an air filter that can be removed for cleaning. There is an additional output connector on the front panel that is hardwired directly to the input connector.
